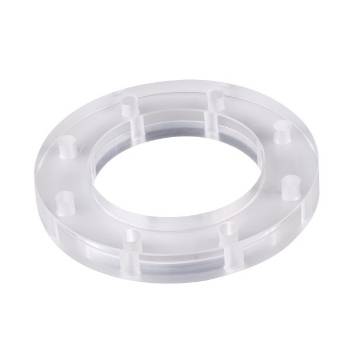

Picture of BF4-SG-25Z - Sightglass Kit - Sightglass Supplied with a Mating 4" TTMA Gasket

BF4-SG-25Z - Sightglass Kit - Sightglass Supplied with a Mating 4" TTMA Gasket

Manufacturer: Liquip
Sightglass Kit - Sightglass Supplied with a Mating 4" TTMA Gasket
SKU: BF4-SG-25Z
Manufacturer part number: BF4-SG-25Z
  • SKU : BF4-SG-25Z
  • Brand : Liquip
  • Product Portfolio : Fluid Handling
  • Product Family : Terminal Solutions
  • Product Group : Terminal Accessories
  • Description : The BF4 Series Of Sightglasses And Flanges Are Made To Suit 4" TTMA Flanges/Piping.
  • Designed For : Flanges Provide The Ability To Make A Removable Connection Between Two Points.
  • Features : Sightglass Flanges Bolt Directly Behind An Outlet Adaptor And Provide The Ability To View Product In Piping To Ensure If A Compartment/Tanker Has Product Present Or If It Has Been Drained.
  • Features : A Kit Is A Part That Combines Two Or More Parts e.g. A BF4-SG-25Z Is A  Sightglass Supplied With A Mating 4" TTMA Gasket.
  • Features : Cast Acrylic Design That Provides Superior Optical Clarity
  • Features : Annealed For Improved Performance With Aggressive Fuel Additives
  • Features : Sightglass Fits Between Two Flanges Of The Same Specification
  • Features : Suitable For All Common Fuel Grades Including Diesel, Unleaded, Jet And Ethanol Blends
  • Operating Temperature : -50°c To 80°c
  • Max Pressure : 1,000kPA
  • Mounting : The Standard Drilling For Sightglasses Is TTMA, So The Unit Will Fit Behind An Api Adaptor As Well As Liquip Butterfly Valve. Mounting Bolts Of Adequate Length Tightened To A Torque Of 20Nm. Tighten Up Evenly In A Criss-Cross Manner. Install With Full Face Gaskets On Both Sides
  • General Information : Do Not Use With Solvents – See Compatibility On Datasheet. Do Not Flame Polish
  • Materials : Acrylic
  • Warranty : 12 Months
