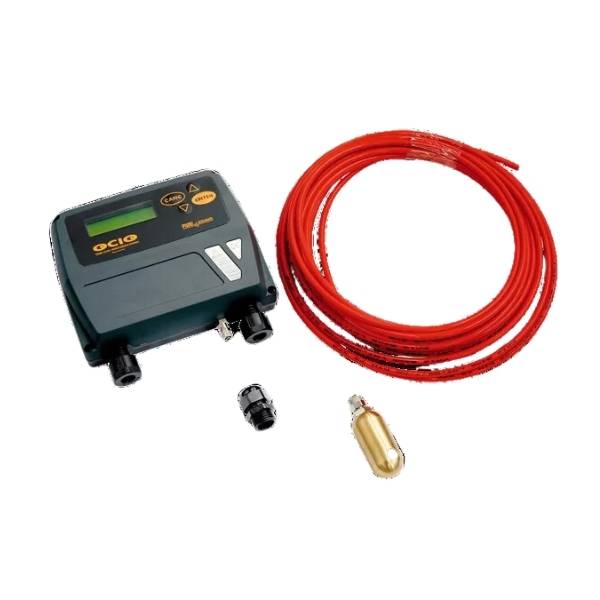

Picture of F00755160 - Tank Gauge 4-20ma- OCIO Tank level indicator for diesel and oil

F00755160 - Tank Gauge 4-20ma- OCIO Tank level indicator for diesel and oil

Manufacturer: Piusi
Tank Gauge 4-20ma- OCIO Tank level indicator for diesel and oil. CCIO - continuous tank level monitoring for fuel and oil that detects the static pressure generated by the flud height by means of a tube inserted into the tank and displays the fluid level or volume.
SKU: F00755160
Manufacturer part number: F00755160
  • SKU : F00755160
  • Brand : Piusi
  • Product Portfolio : Fluid Handling
  • Product Family : Management & Monitoring
  • Product Group : OCIO
  • Fuel
  • Tank Monitoring
  • Tank Level Indicator
  • Hardware
  • GAUGE PIUSI Tank Gauge OCIO 240V Single Tank Display c/w 4-20ma output signal
  • Continuous tank level monitoring.
  • OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.
  • The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
  • Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
  • Maximum measurable height: 4m.
  • Probe tube length: 10 m.
  • The system consists of:
  • A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.
  • A control unit for displaying the level and managing the system
  • The software is used to:
  • Set tank type and dimensions
  • Define alarm levels
  • Define indication level
  • Define measurement unit
  • Calibrate the instrument
  • Technical information
  • Supply voltage 230 V / 50 Hz (120 V / 60 Hz)
  • Protection IP 55
  • Full scale 4 m (12 feet)
  • Accuracy Å} 1 % full scale Contact for maximum and minimum level
  • Max tension 250Vac at 5 Amp (or 30Vdc at 5 Amp)
  • Probe tube length 10 m (10,6 yards) (extensible up to 50 m (52 yards).
  • Level indication
  • Height (mm, inch)
  • Volume (liters, gallons)
  • Filling percentage (%)
  • RS output for PC connection available
  • Main Advantages
  • Continuous metering
  • Indication in height, volume, and filling percentage
  • Maximum and minimum level alarms
  • High accuracy
  • Intuitive software managing procedure
  • Easy installation
  • PC linkup option
  • Fluid Antifreeze, Diesel/HVO/XTL, Food, Oil, Water, Windscreen
  • Application Garage Equipment, Agriculture, Logistic, Mining & Construction, Industrial, Aviation, Naval
  • Warranty : 12 Months
