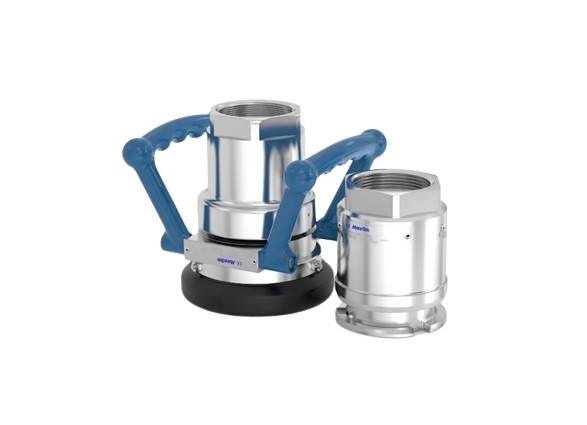

Picture of MT-S414B1101B - 3" (Ø 119mm) Dry Disconnect Hose Unit Coupler - Female Thread F 3" BSP

MT-S414B1101B - 3" (Ø 119mm) Dry Disconnect Hose Unit Coupler - Female Thread F 3" BSP

Manufacturer: Manntek
3" (Ø 119mm) Dry Disconnect Hose Unit Coupler - Female Thread F 3" BSP
SKU: MT-S414B1101B
Manufacturer part number: S414B1101B
  • SKU : MT-S414B1101B
  • Brand : MannTek
  • Product Portfolio : Fluid Handling
  • Product Family : Terminal Solutions
  • Product Group : Dry Disconnect Couplings
  • Description : Dry Disconnect Couplings Are The Given Choice For Handling Any Liquid, Chemicals, Gas. The Standardised Interface To STANAG 3756 With Its Bayonet Coupling Principle Has Been Widely Accepted In The Industry.
  • Description : The 3" (Ø 119 mm) Dry Disconnect Coupling Is Recommended For Similar Applications To The 3" (105 mm) Range, But Where Higher Loading Rates Are Required. Especially In Rail Tankers, Marine Tankers And Related Activities Or On Any Application Where Product Contamination And Spillage Needs To Be Minimized.
  • Application : Application : Industrial Process Plant, Road And Rail Tankers, IBC Containers, Pharmaceutical And Petrochemical Industries Etc.
  • Connection Inch / DN : F 3" BSP
  • Body Material : Aluminium
  • Seal O'Ring : Standard FPM / FKM Viton
  • Flat Seal : PUR (Vulkollan®)
  • Maximum Working Pressure : 10 bar / 145 PSI
  • Test Pressure : 15 Bar / 218 PSI
  • Mininum Burst Pressure : 50 Bar / 726 PSI
  • Weight : 3.8 kg
  • Recommended Maximum Flow Rate : 2000 L/Min Fuel
  • Warranty : 12 Months
