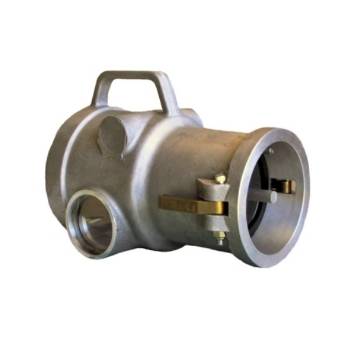

Picture of VCF500 - Vapour Coupler with Dunny Lid

VCF500 - Vapour Coupler with Dunny Lid

Manufacturer: Liquip
Vapour Coupler with Dunny Lid
SKU: VCF500
Manufacturer part number: VCF500
  • SKU : VCF500
  • Brand : Liquip
  • Product Portfolio : Fluid Handling
  • Product Family : Terminal Solutions
  • Product Group : Terminal Accessories
  • Description : 4" Vapour Coupler With Dunny Lid, Spigot And Blind Flange.
  • Description : Vapour Couplers Allow For Vapour Transfer Between Tanker Trucks And Loading/Unloading Tanks.
  • Description : Liquip's Vapour Couplers Automatically Open When Connected To A Compatible Vapour Adaptor And Automatically Seal When Disconnected.
  • Description : Liquip Offers A 100mm (4") With Poppet And Spigot That Can Be Used For Vapour Transfer Between The Tank Truck And Loading/Unloading Tank.
  • Description : The VCF500 Is A Spring Loaded Coupler That Automatically Opens When Coupled To A Compatible Adaptor.
  • Features : Will Operate At Flow Rates Up To 10,000 Litres Per Minute At 20°C (4 Compartments Loading Each At 2,500 LPM).
  • Features : Low Pressure Drop.
  • Features : Unique Hinged Poppet Design Provides Lower Pressure Drops Than Standard Poppets At High Flows Rates.
  • Features : Spring Loaded Poppet Retains Vapours Until Coupled To The Male Vapour Adaptor.
  • Features : Universal 4" (100mm) Camlock Connection.
  • Features : Automatically Seals When Disconnected For Increased Operator Safety.
  • Features : Patented “Dunny Lid” Poppet To Minimum Pressure Drop Across The Valve.
  • Features : Moulded Lip Seal For Reliable Sealing.
  • Features : Fitted With A Sightglass To View Any Product Left From Condensation.
  • Features : Incorporates A Carry Handle For Manoeuvrability.
  • Size : 100mm (4") Bore All Through For Minimum Pressure Drop.
  • Materials : Aluminium Body & Poppet, Brass Cam Levers, Stainless Steel Spring & Shaft, Viton Seal
  • Compatibility : Performs To 97/23/EC Pressure Equipment Direction. Not Compatible With AS5602:2009 Compliant Vapour Adaptors.
  • Mounting : 100mm (4") TTMA Blind Flange With 8 Off M10 X 20 Deep Tapped Holes.
  • Weight : 3 kg
  • Note : VCF500 Is Not Suitable For Use With Australian SLP Compliant Vapour Adaptors Which Require Interference Selectivity Counter Bore On The Vapour Couplers. (Use VCF075W).
  • Warranty : 12 Months
