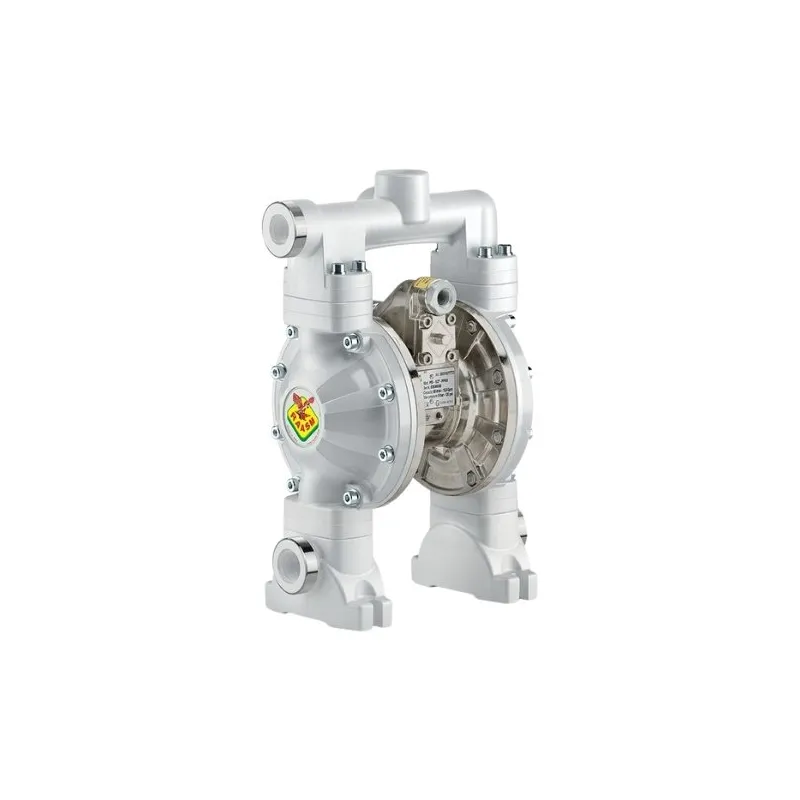

Picture of 2B8/16117NH5 - Dual Inlet Diaphragm Pump Series 1/2" 120-Ppabin Polypropylene And Aluminum With Membranes In Nbr, S

2B8/16117NH5 - Dual Inlet Diaphragm Pump Series 1/2" 120-Ppabin Polypropylene And Aluminum With Membranes In Nbr, S

Manufacturer: Raasm
Dual Inlet Diaphragm Pump Series 1/2" 120-Ppabin Polypropylene And Aluminum With Membranes In Nbr, S
SKU: 2B8/16117NH5
Manufacturer part number: 2B8/16117NH5
GTIN: null
  • SKU : 2B8/16117NH5
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 60 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 330 cpm
  • Delivery per Cycle : 0,188 l
  • Max Suction Lift : Dry Column 4,5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 1,5 mm
  • Max Working Temperature : 65 °C
  • Noise Level : 75 dB
  • Max Air Consumption : 0,50 m3/min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 1/2" (F)
  • Fluid Inlet Connection : Dual Inlet G 3/4" (F)
  • Fluid Outlet Connection : G 1/2" (F)
  • Balls For Inlet : Cylindrical Ball Valve
  • Membranes : NBR
  • Balls : Hytrel®
  • Seats : Polypropylene and AISI 316 Stainless Steel
  • Packing : No. 1 - 0,02 m3
  • Gross Weight : 5,7 Kg
  • Certification : CE and Atex (II 3 GD)
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
