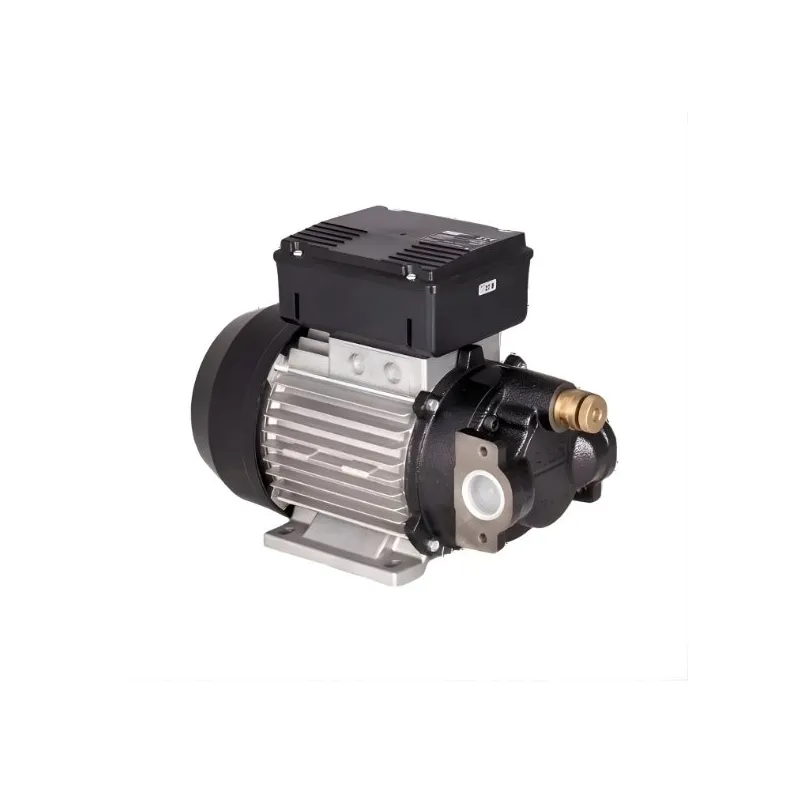

Picture of 303M00 - Electric Viscomat Vane Pump - 90 M 230/50-60 50L/Min 5 Bar 1350/1600W 1400/1600 RPM 1" Inlet/Outlet BSP

303M00 - Electric Viscomat Vane Pump - 90 M 230/50-60 50L/Min 5 Bar 1350/1600W 1400/1600 RPM 1" Inlet/Outlet BSP

Manufacturer: Piusi
Electric Viscomat Vane Pump - 90 M 230/50-60 50L/Min 5 Bar 1350/1600W 1400/1600 RPM 1" Inlet/Outlet BSP
SKU: 303M00
Manufacturer part number: 301Z9597
  • SKU : 303M00
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : AC Pumps
  • Product Class : AC Fuel Pumps
  • Fuel
  • Pumps
  • AC Pumps
  • Oil/Diesel/HVO/XTL
  • Agriculture/Logistic/Mining & Construction
  • Flow Rate (LPM): 50
  • Flow Rate (GPM): 13
  • Pressure Bar: 5
  • Pressure PSI: 71
  • Single Phase Motor V./HZ: 230/50-60
  • Watts: 1350/1600
  • Amp Maximum: 6.2-4.9
  • Inlet/Outlet BSP: 1"
  • Adjustable Bypass Valve: No
  • Viscomat Vane is an oil and diesel transfer pump, available in the Viscomat Vane 70 and Viscomat Vane 90 versions
  • The available AC version is suitable for all those applications where it is necessary to apply a transfer system with high suction capacity in order to transfer fluids with medium-high viscosity
  • The high density of the oil, compared to other types of liquids, requires a greater strength in the transfer phase. For this reason, the Viscomat Vane oil and diesel transfer system is characterized by the AC self-priming vane pump, capable of supporting and guaranteeing a constant flow rate and regularity in the flow dispensed with low viscosity, up to 500 cSt with a flow rate of up to 50 l/min
  • The continuous operation ensures high suction capacity with pressure up to 6 bar
  • The asynchronous AC motor, on the other hand, is self-ventilated, closed and available in different voltages and frequencies, both single-phase and three-phase, in order to adapt to any working condition
  • The Viscomat Vane oil and diesel transfer pump offers the possibility to regulate the operation with closed delivery, thanks to the application of the by-pass integrated in the pump body
  • The sintered steel rotor has resin vanes that provide good strength to the rotor during transfer
  • For greater safety of the oil transfer system, Viscomat Vane can be accessed from the pump side to ensure proper maintenance of the rotating shaft seal.
  • RPM: 1400/1600
  • Warranty : 12 Months
