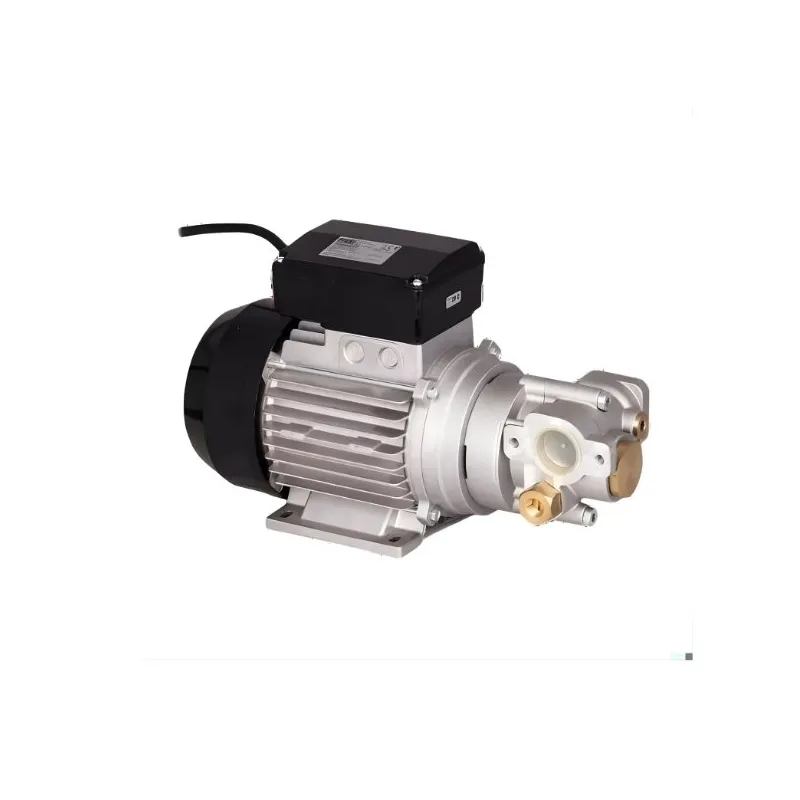

Picture of 304030 - Pump - Viscomat Gear Oil Transfer Pump 200/2 9L/Min 12 Bar 800/950W 1450/1700 RPM 1" Inlet/Outlet BSP

304030 - Pump - Viscomat Gear Oil Transfer Pump 200/2 9L/Min 12 Bar 800/950W 1450/1700 RPM 1" Inlet/Outlet BSP

Manufacturer: Piusi
Viscomat Gear Oil Transfer Pump 200/2 M. Single Phase 9L/Min 12 Bar 800/950W 1450/1700 RPM 1" Inlet/Outlet BSP
SKU: 304030
Manufacturer part number: 301Z11368
  • SKU : 304030
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : AC Pumps
  • Product Class : AC Fuel Pumps
  • Lube
  • Pumps
  • AC Pumps
  • Oil
  • Garage Equipment/Industrial
  • Flow Rate (LPM): 9
  • Flow Rate (GPM): 2.4
  • Pressure Bar: 12
  • Pressure PSI: 170
  • Single Phase Motor V./HZ: 230/50/60
  • Watts: 800/950
  • Amp Maximum: 3.8/4.6
  • RPM: 1450/1700
  • Inlet/Outlet BSP: 1"
  • Bypass Valve: Yes
  • The high viscosity of the lubricating oil, unlike other types of fluids, needs to be transferred with greater strength
  • For this reason, the Viscomat Gear oil transfer system is characterized by the self-priming gear pump, capable of supporting and guaranteeing a steady flow rate and consistency in the flow dispensed with high viscosity, up to 2000 cSt with a flow rate of up to 14 l/min
  • Incorporated Bypass Valve
  • The continuous operation guarantees high suction capacity with pressure up to 25 bar.
  • The sintered steel rotor features gears that provide good strength to the rotor during transfer.
  • Warranty : 12 Months
