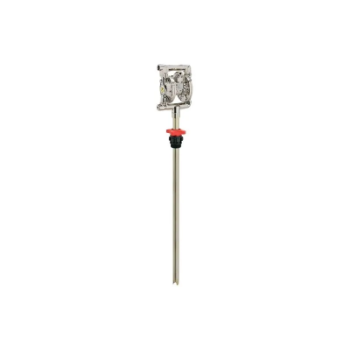

Picture of 33505 - 70L/Min Diaphragm Pump Series AB-34 in Aluminum with Membranes in NBR and Suction Tube

33505 - 70L/Min Diaphragm Pump Series AB-34 in Aluminum with Membranes in NBR and Suction Tube

Manufacturer: Raasm
Diaphragm Pump Series AB-34 in Aluminum with Membranes in NBR and Suction Tube For Tanks
SKU: 33505
Manufacturer part number: 301Z9934
  • SKU : 33505
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 70 l/min
  • Ratio : 1:1
  • Compatible Fluids : Water, Mineral-Vegetable Oils, Diesel Fuel
  • Pump Material : Aluminum
  • Ball Valve Material : Hytrel®
  • Air Inlet Connection : G 3/8" (F)
  • Fluid Inlet-Outlet Connection : Suction Tube Ø 34 Mm - G 3/4" (F)
  • Air Working Pressure : 2 - 6 Bar
  • Max Supply Pressure : 8 Bar
  • Average Air Consumption : 500 l/min
  • Noise Level : 75 dB
  • Fluid Temperature : -10 - 90 °C
  • Max Solids Diameter : Ø 1,5 mm
  • Suitable for Drums or Tanks : Tank
  • Suction-Delivery Ball Valve with Spring : Ball Valve with Spring
  • Packing : No. 2 - 0,040 m3
  • Weight : 11 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
