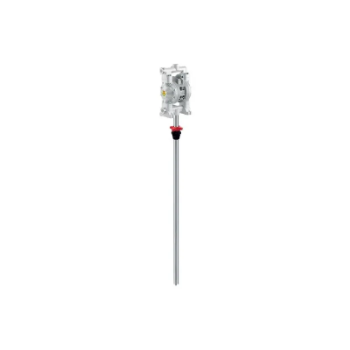

Picture of 33517 - 65L/Min Diaphragm Pump Series PPB-12 in Polypropylene with Suction Tube in Stainless Steel

33517 - 65L/Min Diaphragm Pump Series PPB-12 in Polypropylene with Suction Tube in Stainless Steel

Manufacturer: Raasm
Diaphragm Pump Series PPB-12 in Polypropylene with Suction Tube in Stainless Steel for Drums 180 - 220 Kg
SKU: 33517
Manufacturer part number: 301Z9938
  • SKU : 33517
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 65 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 330 cpm
  • Delivery per Cycle : 0,188 l
  • Max Suction Lift : Dry Column 4,5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 1,5 mm
  • Max Working Temperature : 65 °C
  • Noise Level : 76 dB
  • Max Air Consumption : 0,89 m3/min
  • Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 3/4" (F)
  • Fluid Inlet Connection : G 3/4" (F) (G 1" (F) For Drum)
  • Fluid Outlet Connection : G 1/2" (F)
  • Suction-Delivery Ball Valve with Spring : Cylindrical Ball Valve
  • Membranes : EPDM
  • Balls : Acetal
  • Seats : Polypropylene and AISI 316 Stainless Steel
  • Bung Adaptor : P/N 33434
  • Suction Tube : Length 940 mm - Diameter Ø 34 mm
  • Packing : No. 2 - 0,034 m3
  • Gross Weight : 12,55 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
