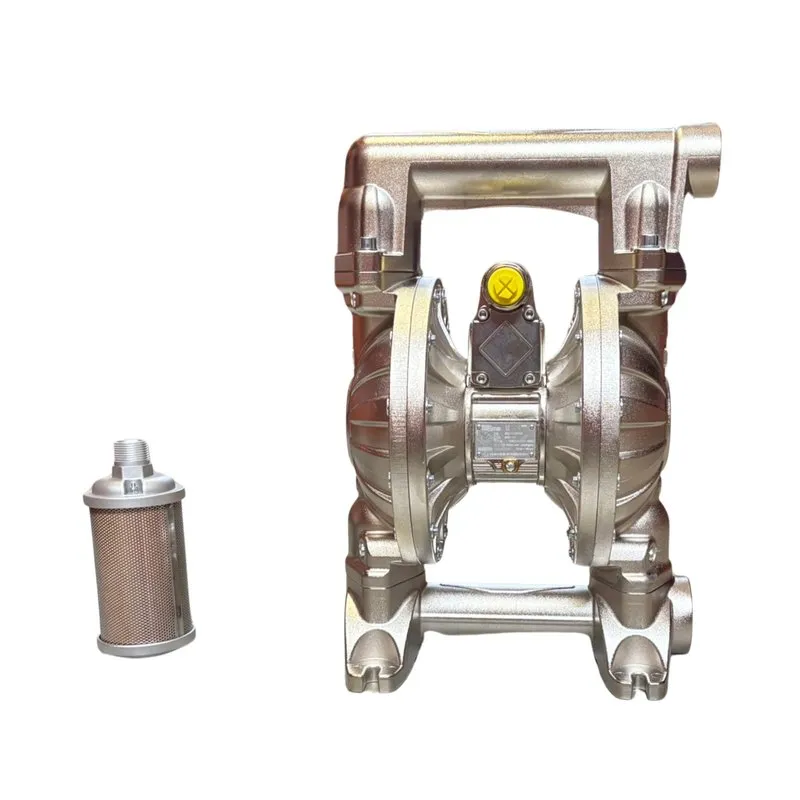

Picture of 3C¼0111NHH - 480L/Min Diaphragm Pump in Aluminum Series AAB-112 with Membranes in NBR

3C¼0111NHH - 480L/Min Diaphragm Pump in Aluminum Series AAB-112 with Membranes in NBR

Manufacturer: Raasm
Diaphragm Pump in Aluminum Series AAB-112 with Membranes in NBR, Balls and Seats In Hytrel®, Flow Rate of 480L/Min, for Fresh Oil, Water and Diesel Fuel
SKU: 3C1/40111NHH
Manufacturer part number: 301Z9835
  • SKU : 3C1/40111NHH
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Fluids : Fresh Oil, Water, Diesel Fuel
  • Sectors : Aeronautic, Agriculture, Automotive, Lube Truck and Industrial Vehicle, Cleaning, Building Industry and Road Construction, Railway Transport, Chemical Industry, Manufacturing Industry, Mining, Shipping and offshore
  • Certifications : Atex (Zone 1), Atex (Zone 21)
  • Flow Rate : 480 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 220 CPM
  • Delivery per Cycle : 2,150 L
  • Max Suction Lift : Dry Column 5 M - Wet Column 7,5 M
  • Max Size Pumpable Solids : 5,5 mm
  • Max Working Temperature : 100 °C
  • Noise Level : 78 dB
  • Max Air Consumption : 3,4 m3/Min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G ¾" (F)
  • Air Outlet Connection (Muffler) : G 1" (F)
  • Fluid Inlet Connection : G 2" (F)
  • Fluid Outlet Connection : G 1½" (F)
  • Balls For Inlet : Ball Valve
  • Membranes : NBR
  • Balls : Hytrel®
  • Seats : Hytrel®
  • Packing : No. 1 - 40x32x54,5 cm
  • Gross Weight : 21,5 kg
  • Warranty : 12 Months
