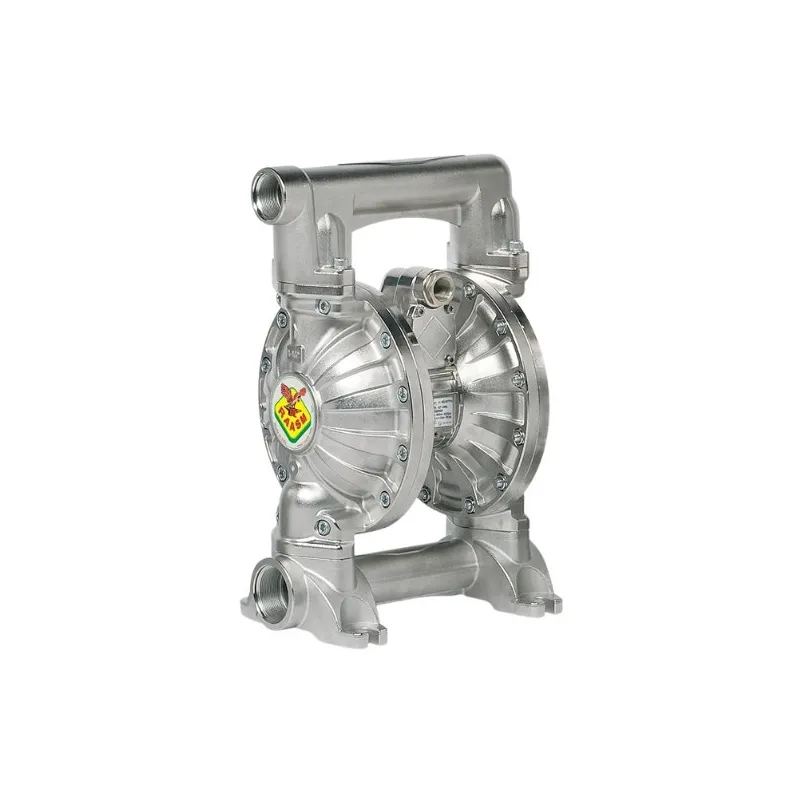

3C1/40111TTP - Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal

Name: 3C1/40111TTP - Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal
SKU: 3C1/40111TTP
Availability: InStock

Manufacturer: Raasm

Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal

SKU: 3C1/40111TTP

Manufacturer part number: 3C1/40111TTP

GTIN: null

SKU : 3C1/40111TTP
Brand : Raasm
Product Portfolio : Fluid Technology
Product Family : Pumps
Product Group : Diaphragm Pumps
Flow Rate : 450 l/min
Ratio : 1:1
Max Pressure : 8 Bar
Max Cycles per Minute : 220 cpm
Delivery per Cycle : 2,150 l
Max Suction Lift : Dry Column 5 m - Wet Column 7,5 m
Max Size Pumpable Solids : 5,5 mm
Max Working Temperature : 100 °C
Noise Level : 78 dB
Max Air Consumption : 3,40 m3/min
Air Working Pressure : 2 - 6 Bar
Air Inlet Connection : G 3/4" (F)
Air Outlet Connection (Muffler) : G 1" (F)
Fluid Inlet Connection : G 2" (F)
Fluid Outlet Connection : G 1.1/2" (F)
Balls For Inlet : Ball Valve
Membranes : PTFE + Hytrel®
Balls : PTFE
Seats : Polypropylene
Packing : No. 1 - 0,07 m3
Gross Weight : 21,5 Kg
Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
Warranty : 12 Months
