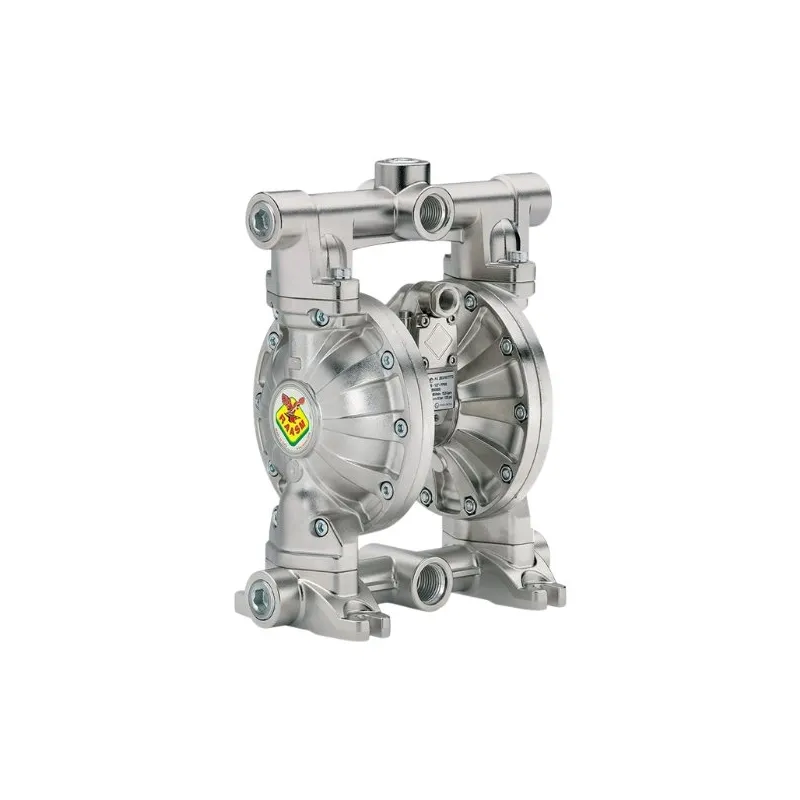

Picture of 3C3/26111TTP - Dual Inlet Diaphragm Pump 1" 1000-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal

3C3/26111TTP - Dual Inlet Diaphragm Pump 1" 1000-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal

Manufacturer: Raasm
Dual Inlet Diaphragm Pump 1" 1000-Ab In Aluminum With Membranes In Ptfe+Hytrel®, Seats In Pp And Bal
SKU: 3C3/26111TTP
Manufacturer part number: 3C3/26111TTP
GTIN: null
  • SKU : 3C3/26111TTP
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 150 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 300 cpm
  • Delivery per Cycle : 0,590 l
  • Max Suction Lift : Dry Column 5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 3 mm
  • Max Working Temperature : 100 °C
  • Noise Level : 75 dB
  • Max Air Consumption : 1,40 m3/min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 1/2" (F)
  • Fluid Inlet Connection : 4 X G 1" (F)
  • Fluid Outlet Connection : 5 X G 1" (F)
  • Balls For Inlet : Ball Valve
  • Membranes : PTFE + Hytrel®
  • Balls : PTFE
  • Seats : Polypropylene
  • Packing : No. 1 - 0,03 m3
  • Gross Weight : 13 Kg
  • Certification : CE and Atex (II 2 GD)
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
