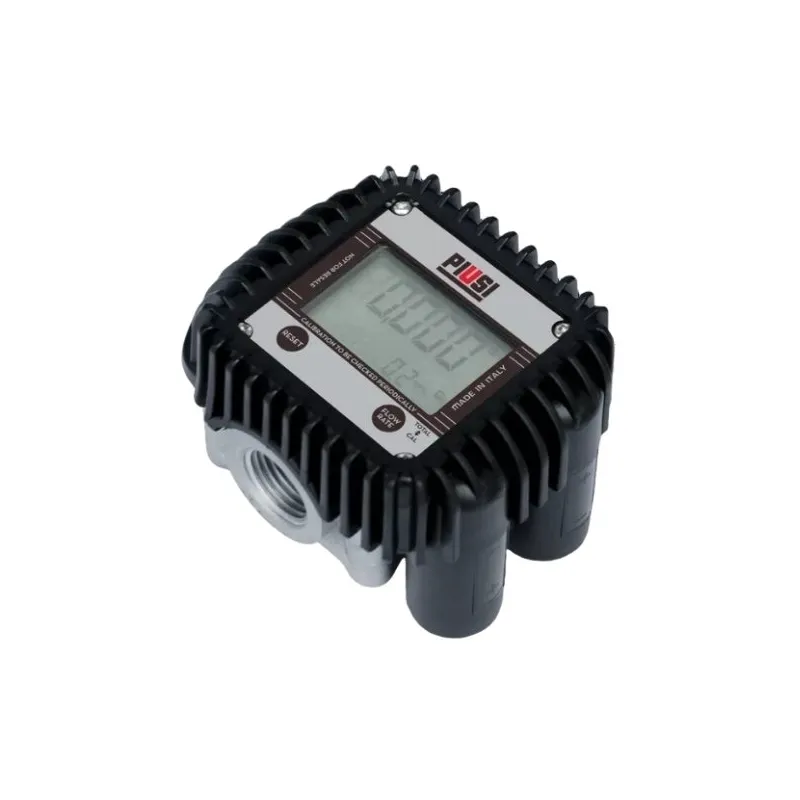

Picture of F00484000 - Premium Oval gear Oil Meter - K400 1-30 L/Min 70Bar Batteries Included Inlet 1/2" BSP Outlet 1/2" BSP

F00484000 - Premium Oval gear Oil Meter - K400 1-30 L/Min 70Bar Batteries Included Inlet 1/2" BSP Outlet 1/2" BSP

Manufacturer: Piusi
Premium Oval gear Oil Meter - K400 1-30 L/Min 70Bar Batteries Included Inlet 1/2" BSP Outlet 1/2" BSP
SKU: F00484000
Manufacturer part number: 301Z10973
  • SKU : F00484000
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Meters
  • Product Group : Electronic Meters
  • Product Class : Electronic Fuel Meters
  • Lube
  • Meters
  • Electronic Meters
  • Oil
  • Garage Equipment/Agriculture/Logistics/Mining & Construction/Industrial
  • Flow Rate : 1-30L/Min
  • Flow Rate (GPM): 0.26-7.8
  • Working Pressure Bar: 70
  • Working Pressure PSI: 994
  • Batteries Included ( AAA No.2 2 x 1.5 V): Yes
  • Inlet: 1/2" BSP
  • Outlet: 1/2" BSP
  • Oval gear electronic flow meters and oval gear pulser flow meters for controlling the dispensing of lubricating oils and diesel
  • Body with aluminium measuring chamber.
  • The operating principle of the oval gears allows for a high degree of accuracy when measuring and reduced loss of pressure.
  • The new K400 can be used either in-line on hoses, or on the nozzle, for instantaneous measuring of the fluid dispensed.
  • Standard AAA-size batteries
  • Bursting pressure: 200 bar
  • Easy inspection and maintenance
  • Working pressure 70 bar
  • Aluminium body, Rubber protector
  • Oval gear in acetal resin
  • 5 figure partial display (Resettable), 7 figure total
  • Loss of pressure <0.5 bar
  • Flow rate up to 30 l/min
  • Accuracy +/- 0,5 %
  • Repeatability: 0.2 %
  • Viscosity 2 - 2000 cSt
  • Warranty : 12 Months
