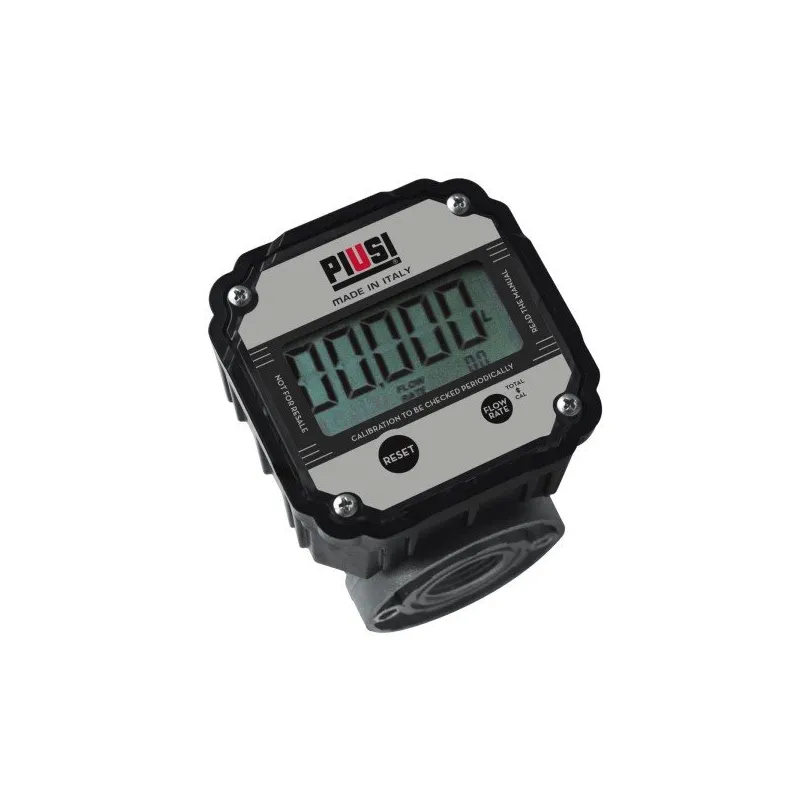

Picture of F00491000 - PIUSI K600 B/3 Electronic Diesel Flow Meter

F00491000 - PIUSI K600 B/3 Electronic Diesel Flow Meter

Manufacturer: Piusi
K600 B/3 Electronic Diesel Flow Meter
SKU: F00491000
Manufacturer part number: 301Z9605
  • SKU : F00491000
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Meters
  • Product Group : Electronic Meters
  • Product Class : Electronic Fuel Meters
  • Fuel
  • Meters
  • Electronic Meters
  • Diesel
  • Description : Piusi K600 B/3 Is An Electronic Diesel Flow Meter Suitable For Monitoring The Quantity Of Diesel Or Lubricating Oil Dispensed. For Non-Commercial Use, The Uniqueness Of K600 B/3 Is To Have A Larger, Easy To Read Display Sized 80 Mm, With A Partial Total Of 5 Digits (H=24 Mm) With Floating Point From 0.001 To 999.99 Total, Not Resettable To 8 Digits (H=5 Mm) From 1 To 99999999.
  • Features : The K600 B/3 Flow Meter Consists Of Oval Gears In Acetal Resin For Precise Monitoring Of The Dispensed Quantity Of Diesel. The Structure Of The Flow Meter Is Solid And Robust With An Aluminium Measuring Chamber And The Integrated Suction Filter Safeguards The Integrity Of The Flow Meters. It Guarantees A Safe Dispensing Without Impurities, Which May Result In Unpleasant Blocks While Dispensing.
  • Features : The Pulse Out Version Is Also Available On Request. It Is Divided Into Two Types Of Flow Meters, Which Differ According To The Type Of Installation. The K600 B/3 Flow Meter Has A Display And Can Be Installed In The Fluid Transfer System, While K600 B/3 Pulse-Out Has No Display And Can Be Connected Via A 10-Metre Connection Wire To The Remote Flow Meter. Its Application Is Recommended In Case You Want To Monitor The Quantity Dispensed Not Directly On The System, But From The Office.
  • Accuracy : +- 0.5%
  • Repeatability : 0.2%
  • Fluids : Diesel/HVO/XTL
  • Application : Industrial, Logistic, Mining & Construction
  • Flow Rate : 10 - 100 L/Min
  • Pressure : 30 Bar
  • Pressure : 426 PSI
  • Battery : No. 2 X 1.5V Included
  • Flange : Yes
  • Weight : 2 kg
  • Inlet / Outlet : 1" Bsp
  • Inlet Filter : Yes
  • In The Box : K600 B/3 Meter, Flanges And Instruction Manual
  • Warranty : 12 Months
