F00565000 - Mechanical Diesel Fuel Flow Gauge - K44 Pulser 20-120L/Min 3.5Bar 10(38) Pulser P/L 1" Inlet/Outlet BSP

Name: F00565000 - Mechanical Diesel Fuel Flow Gauge - K44 Pulser 20-120L/Min 3.5Bar 10(38) Pulser P/L 1" Inlet/Outlet BSP
SKU: F00565000
Availability: InStock

Manufacturer: Piusi

Mechanical Diesel Fuel Flow Gauge - K44 Pulser 20-120L/Min 3.5Bar 10(38) Pulser P/L 1" Inlet/Outlet BSP

SKU: F00565000

Manufacturer part number: 301Z10723

SKU : F00565000
Brand : Piusi
Product Portfolio : Fluid Technology
Product Family : Meters
Product Group : Mechanical Meters
Product Class : Mechanical Fuel Meters
Fuel
Meters
Pulse Meters
Diesel/HVO/XTL
Agriculture/Logistic/Mining & Construction/Industrial
Flow Direction: →
Flow Rate (LPM): 20-120
Flow Rate (GPM): 5-32
Pressure Bar: 3.5
Pressure PSI: 50
Pulser P/L (P/GAL): 10(38)
Inlet /Outlet: 1" BSP

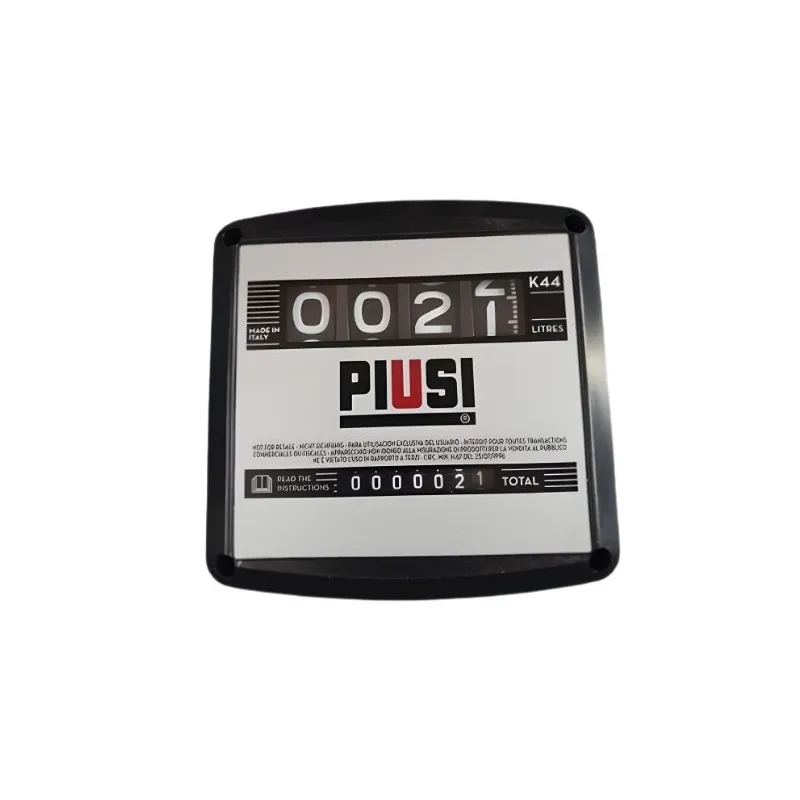

The PIUSI K33 and K44 are mechanical flow meters suitable for the monitoring of diesel. PIUSI K33 as a mechanical flow meter has a partial indicator with 3 digits (max. 999 litres), total 6 digits, while PIUSI K44 has a partial indicator with 4 digits (max. 9999 litres), with a total of 7 digits.
The K33 and K44 mechanical diesel flow meters have been designed for precise measurement of the quantity of fuels dispensed for non-commercial use
Easy to calibrate and install, the K33 and K44 flow meters can monitor the quantity dispensed for a maximum flow rate of 20-120 l/min and with a maximum working pressure of the pump of 10 bar.
In addition, they can guarantee a burst pressure of 30 bar with a metering accuracy of +/- 1%.
The K33 and K44 mechanical flow meter for diesel is easy to calibrate at the place of installation and is suitable for installation on pumps or service stations for diesel, for those who want to keep the amount of dispensed fluid monitored without special needs for storage.
K33 and K44 are reliable and economic mechanical flow meters that can also be used by gravity, thanks to the low resistance to flow.
Warranty : 12 Months
