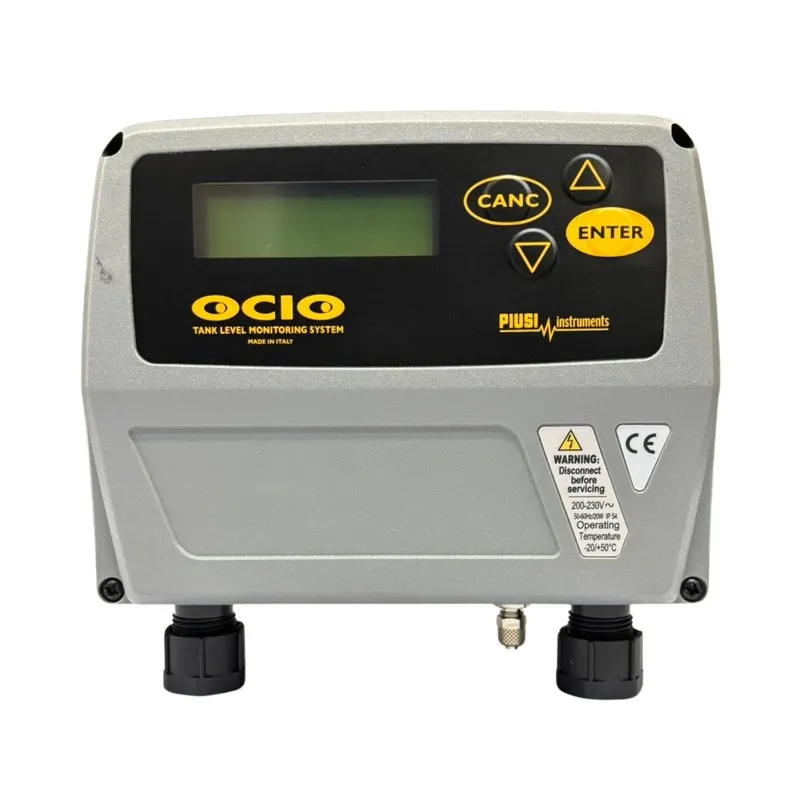

Picture of F00755160 - OCIO - Tank Level Indicator LV/ 4/20 mA Output 230/50 Viscosity cSt Up to 30

F00755160 - OCIO - Tank Level Indicator LV/ 4/20 mA Output 230/50 Viscosity cSt Up to 30

Manufacturer: Piusi
OCIO - Tank Level Indicator LV/ 4/20 mA Output 230/50 Viscosity cSt Up to 30
SKU: F00755160
Manufacturer part number: 301Z10784
  • SKU : F00755160
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Management & Monitoring
  • Product Group : OCIO
  • Fuel
  • Tank Monitoring
  • Tank Level Indicator
  • Antifreeze/Diesel/HVO/XTL/Oil/Water/Windscreen
  • Industrial/Agriculture/Logistic/Mining & Construction/Garage Equipment/Naval
  • Viscosity cSt: Up to 30
  • Voltage AC V./HZ: 230/50
  • Watts: 20
  • RS Exit: Available
  • OCIO is a tank level indicator for fuel and oil that detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume
  • The system consists of: A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices
  • A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom
  • The software is used to: Set tank dimensions and type; Define indication level; Define alarm levels; Calibrate the instrument; Define measurement unit
  • In base of on the set alarm levels, the control unit deactivates or activates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
  • Warranty : 12 Months
