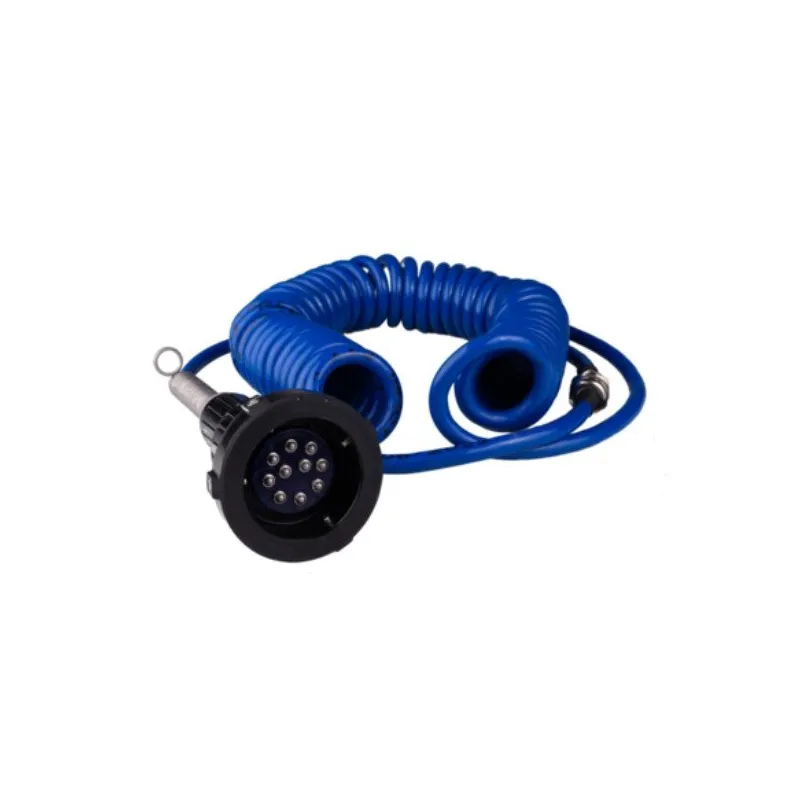

Picture of GP103 - Gantry Plug with 3 J-Slot Bayonet with Cable & Gland

GP103 - Gantry Plug with 3 J-Slot Bayonet with Cable & Gland

Manufacturer: Liquip
Gantry Plug with 3 J-Slot Bayonet with Cable & Gland
SKU: GP103
Manufacturer part number: 301Z10401
  • SKU : GP103
  • Brand : Liquip
  • Product Portfolio : Terminal Solutions
  • Product Family : Terminal Accessories
  • Description : Liquip Gantry Plugs Are Industry Standard 3 Bayonet (J-Slot) Plugs With 10 Pin As Standard To Cover All Installation Options. The GP10X Plug Provides The Interface Between The Terminal/Gantry Systems And A Tanker For Overfill Protection And/Or Grounding.
  • Description : Gantry Plugs Are Designed For Use With Common Industry Overfill Protection Monitors Including The Liquip RM140 “Overfill Monitor”.
  • Features : Caters For Up To 8 Compartments With 2-Wire Probes.
  • Features : Robust Petroleum-Resistant Housing Which Can Withstand Harsh Environments.
  • Features : 10 Core Self-Coiling Petroleum-Resistant Cable (8m Maximum Reach).
  • Features : High-Visibility Cable For Ease Of Visibility And Safety.
  • Features : Supplied With A M25 Cable Gland. Junction Box Is Supplied With An Adaptor To ¾” Npt. This Allows Interchangeability For Spare Parts.
  • Features : Junction Box Includes Hanger For Cable Loop-Spring.
  • Features : Socket Is Heavily Ribbed For Better Grip And Bayonet Positions Clearly Visible By Being Mounted On Bosses.
  • Cable Parameters : Capacitance C = 1.1 nF. Inductance L = 12 μH. Inductance/Resistance Ratio L/R = 35 μH/Ω.
  • Materials : All Materials Are Non-Static Producing.
  • Weight : 3.5kg For GP10X Only. 5.0kg For Total Including Junction Box
  • Mounting : Junction Box Has Two Internal Mounting Holes For 8mm Diameter Bolts.
  • Notes : Replace The Cable Gland With Appropriate Approved Explosion-Proof Types If Directly Installed To The Overfill Monitor.
  • Spare Parts : 5115 Self-Store Coiled Cable, Blue. Plugs Are Available As Spare Part GP103-3 Or GP104-4
  • Warranty : 12 Months
