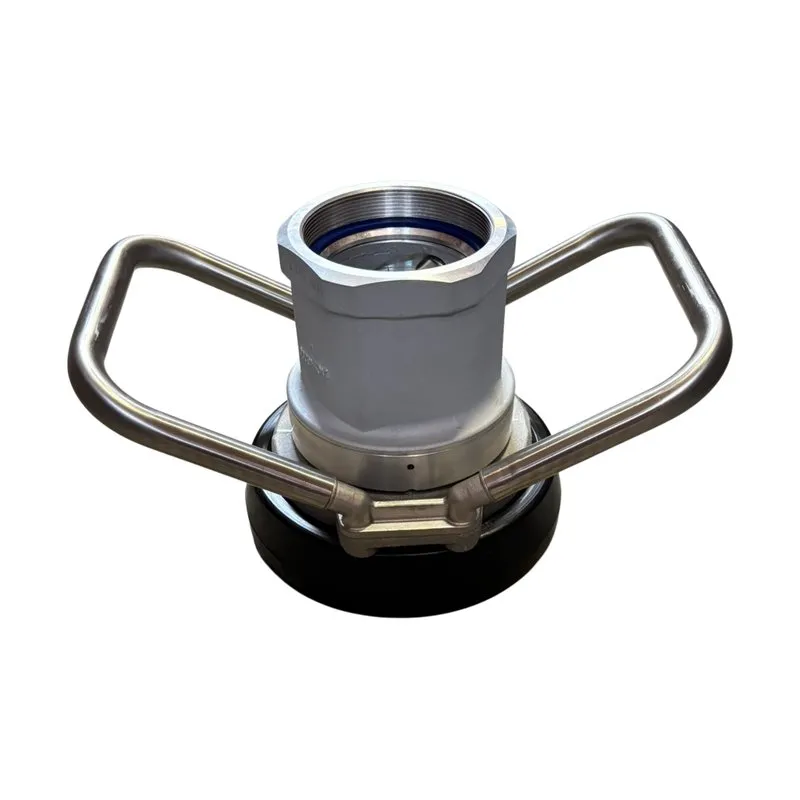

Picture of MT-S516B1101B - Hose Unit 4" - 4" Bsp Al Fpm/Pur Ps 16 Bar Dry Break Coupling

MT-S516B1101B - Hose Unit 4" - 4" Bsp Al Fpm/Pur Ps 16 Bar Dry Break Coupling

Manufacturer: Manntek
Hose Unit 4" - 4" Bsp Al Fpm/Pur Ps 16 Bar Dry Break Coupling
SKU: MT-S516B1101B
Manufacturer part number: MT-S516B1101B
GTIN: null
  • SKU : MT-S516B1101B
  • Brand : Manntek
  • Product Portfolio : Terminal Solutions
  • Product Family : Dry Disconnect Couplings
  • Description : Dry Disconnect Couplings Are The Given Choice For Handling Any Liquid, Chemicals, Gas. The Standardised Interface To STANAG 3756 With Its Bayonet Coupling Principle Has Been Widely Accepted In The Industry.
  • Application : The 4" (Ø 164 mm) Is Recommended Loading/Unloading Of Rail Tanker, Aviation Refueller, Road Tanker Etc. Also Recommended For Ship To Shore Transfer, Ship To Ship Transfer And Ship To Rig Transfer Or On Any Application Where Spillage Needs To Be Minimized
  • Connection Inch / DN : F 4" BSP
  • Body Material : Aluminium
  • Seal O'Ring : Standard FPM / FKM Viton
  • Flat Seal : PUR (Vulkollan®)
  • Maximum Working Pressure : 10 bar / 145 PSI
  • Test Pressure : 15 bar / 218 PSI
  • Mininum Burst Pressure : 50 bar / 726 PSI
  • Weight : 7.6 kg
  • Recommended Maximum Flow Rate : 3500 L/Min Fuel
  • Warranty : 12 Months
