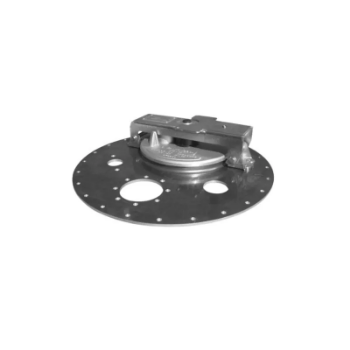

KAL-11.45.1101SA - SK4500AI Manhole Cover Assembly ADR/EN Aluminium, Ø 500mm, 3 Port-GR

Name: KAL-11.45.1101SA - SK4500AI Manhole Cover Assembly ADR/EN Aluminium, Ø 500mm, 3 Port-GR
SKU: KAL-11.45.1101SA
Availability: InStock

Manufacturer: Kalymnos

SK4500AI Manhole Cover Assembly ADR/EN Aluminium, Ø 500mm, 3 Port-GR, includes SK3250 safety fitting cover

SKU: KAL-11.45.1101SA

Manufacturer part number: 301Z11129

SKU : KAL-11.45.1101SA
Brand : Kalymnos
Product Portfolio : Fluid Technology
Product Family : Tanker Solutions
Product Group : Tanker Accessories
Kalymnos Fuel Engineering presents its complete range of tank truck manhole covers, engineered to meet and exceed the stringent requirements of both European (ADR/EN) and North American (DOT) standards
For European & ADR Markets The SK4500Al (aluminum) and SK4500St (steel) models are certified for impact resistance (Drop Test), in full compliance with standards EN13317, EN13314, and EN14596, ensuring maximum safety
For North American & DOT Markets We offer specialized designs conforming to DOT MC406 standards, available in 16” and 20” diameters. For installation flexibility, variants with a bolting system or a clamping ring are available
Common Quality Feature: All Kalymnos fuel engineering manhole covers, regardless of the standard, include as a standard component the SK3250 Fitting Cover, ensuring a complete and safe solution for every application
An Ø 500 mm manhole cover assembly designed in accordance with ADR regulation requirements, offering unparalleled safety and operational features
Design & Certification: Manufactured in compliance with EN13317, EN14596, and EN13314 standards
Superior Strength: Exceeds the requirements of the EN Drop Test (EN 13317:2002)
Integrated Safety Fitting: Ø250 filling hole cover with an integrated emergency pressure relief valve, conforming to EN14596:2005 and EN13314:2002
Safe Operation: Two-stage opening and a built-in locking mechanism eliminate the risk of accidental opening
Venting Connection: 2″ NPT port for installing the tank compartment breather valve
Accessory Ports: Available with various port options for installing level gauging equipment, vapor recovery, and overfill prevention sensors
Mounting: 24 x Ø9.5mm mounting holes on a Ø530mm PCD
Seals: NBR gaskets, suitable for fuel products
Operating Temperature: -20°C to +50°C. A low-temperature variant is available for -32°C to +50°C
Pressure Rating: Maximum operating pressure 22 kPa
Pressure Relief Setting: 28 kPa
Pressure Relief Capacity: 6,500 m³/h @ 35 kPa
Total Weight: 13.5 kg
Available Materials: Aluminum, steel, stainless steel
Custom Variants: Versions with ports for auxiliary vapor recovery and level gauging equipment are available
Warranty : 12 Months
