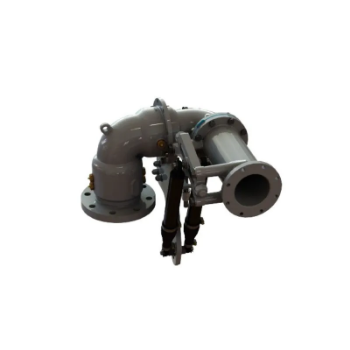

Picture of LBM800-1Z - Standard Balance Mechanism with 2x 2800N Struts

LBM800-1Z - Standard Balance Mechanism with 2x 2800N Struts

Manufacturer: Liquip
Standard Balance Mechanism with 2x 2800N Struts
SKU: LBM800-1Z
Manufacturer part number: 301Z11160
  • SKU : LBM800-1Z
  • Brand : Liquip
  • Product Portfolio : Terminal Solutions
  • Product Family : Terminal Accessories
  • Description : The ‘Bulletproof’ LBM800 Provides Effortless Bottom Loading In Petrochemical Distribution Depots Through The Use Of The Unique Design Known As The ‘Velvet Touch’.
  • Description : The Ability Of 360° Rotation In The Horizontal Plane Allows The LBM800 To Easily Move From A Parked To Loading Position, To Service Vehicles On Either Side Of The Loading Bay. While The Vertical Plane Swivel Allows Users To Position The Coupler At Different Heights Within The API Envelope.
  • Features : Superior Safety Through Liquip’s Unique Gas Strut Design.
  • Features : Exceptional Durability And Minimal Servicing Requirements Thanks To The Best In Class Base Swivel Assembly And Overall Design.
  • Features : Any Unit Can Be Easily Configured For Left Hand, Right Hand, Upward And Downward Configurations On Site.
  • Features : Slimline Drop Leg Bracket Provides Easy Installation And Compact Overall Size.
  • Features : Enhanced Strength And Ease Of Adjustment Through A Heavy Duty Adjustment Mechanism.
  • Features : Downtime During Installation Is Reduced By An All-Flanged Design.
  • Features : Outlet Spool Provides An Industry Standard 100mm (4”) TTMA Connection For Simple Installation.
  • Features : Adjustable Up/Down Stop That Can Be Set With Minimal Effort.
  • Features : Velvet Touch Provides Smooth Operation Over The Entire Stroke Of The Loading Arm.
  • Working Pressure : 1,000 kPa (145 PSI)
  • Test Pressure : 1,500 kPa (217 PSI)
  • Material : Investment Cast 4130 Steel Construction
  • Seal : Fitted With Viton GFLTProduct Seals & HAN Dust Seal
  • Mounting : Base Flange Is 4” ANSI 150 Raised Face Flange And The Outlet Flange Is 100mm (4") TTMA Pattern
  • Weight : 60.4 kg
  • Operating Tempurature : Viton GFLT (Standard): -40°C To +90°C (-40°F To + 200°F)
  • Min Moment : 90 kg.m
  • Max Moment : 250 kg.m
  • Brass Retainer Plug Thread : ¼” UNF
  • Up / Down Angluar Movement : -15° To +15° (From Horizontal)
  • Typical Horizontal Spacing : 650mm
  • Typical Vertical Spacing : 450mm
  • Typical Radius Of Arm : 1300mm To 2000mm
  • Typical No. Of Arms Per Bay : 6
  • Warranty : 12 Months
