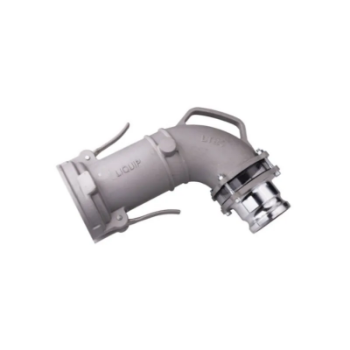

LIQLTE4X4 - Aluminium Elbow 100mm Male Camlock x 100mm Titefill Elbow

Name: LIQLTE4X4 - Aluminium Elbow 100mm Male Camlock x 100mm Titefill Elbow
SKU: LIQLTE4X4
Availability: InStock

Manufacturer: Liquip

Aluminium Elbow 100mm Male Camlock x 100mm Titefill Elbow

SKU: LIQLTE4X4

Manufacturer part number: 301Z9724

SKU : LIQLTE4X4
Brand : Liquip
Product Portfolio : Fluid Technology
Product Family : Tanker Solutions
Product Group : Tanker Accessories
Description : The LTE Series Product Delivery Elbows Connect Discharge Hoses From A Road Tanker To A Fill Point On Underground Storage Tanks Fitted With Liquip Tight Fill Adaptors Or Similar.
Features : Liquip's Product Delivery Elbows Allow For Quick And Safe Product Transfer. Spring Loaded Levers Allow The Elbows To Snap On Securely To An Side Seal Tight Fill Adaptor With Minimal Pressure. The Latest Models Of 4” LTE Elbows Are Still Fitted With Viton Base Seals And Are Now Fitted With NBR Sight Glass Seals Which Provide The Same Functionality As Existing LTE's (Unless Otherwise Specified).
Features : Spill Free Delivery During Discharge Of Tank Trucks.
Features : Incorporated Sightglass For 360° View Product Flow.
Features : Sealing On The Bottom Connection Is Via Lip Seal On The Side Of The LTA Adaptor As This Surface Is Rarely Worn.
Features : Ergonomic Design For Added Operator Safety.
Features : Easy Connection And Disconnection.
Features : Quick Release Design.
Features : Connection At The Top Inlet Is Via Standard Camlock.
Features : Spring Loaded Levers That Snap Onto Adaptors With Minimal Pressure.
Can Now Be Purchased With A Locking Ring Which Will Prevent The Elbow From Inadvertently Dislodging During Use. Please Enquire With Our Sales Team.
Spare Parts : Remain Interchangeable Between Various Models
Inlet : 100mm
Bore : 100mm
Mounting : Hand Mounted Push & Click With Quick Release Levers
Material Body : Aluminium
Material Levers : Stainless Steel
Material Sightglass : Acrylic
Seal : Viton®
Weight : 3.9 kg
Warranty : 12 Months
