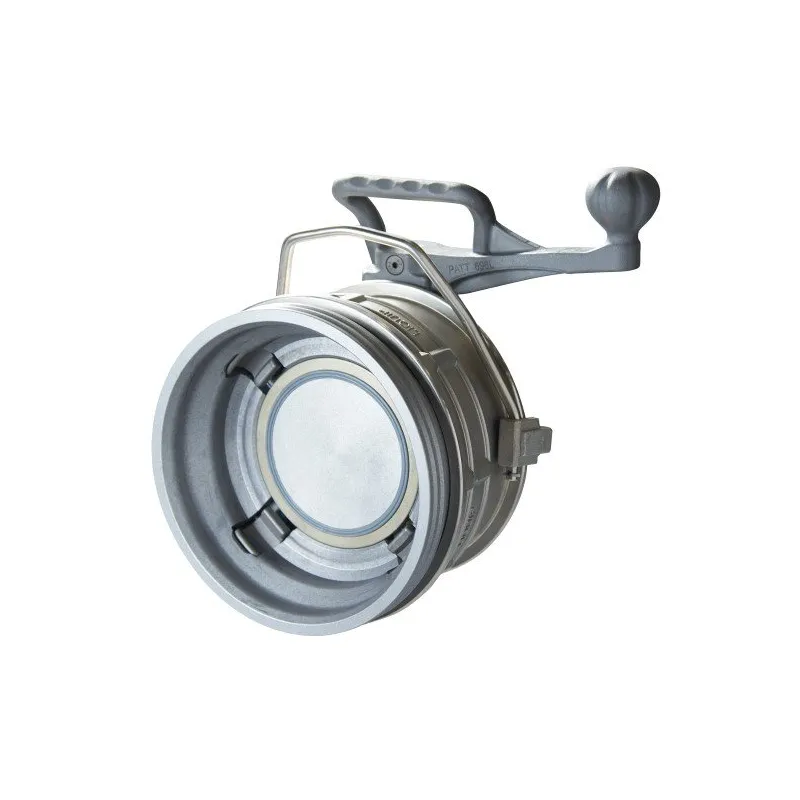

LYNX852 - Female API Coupler, Long Handle, Viton B

Manufacturer: Liquip
Female API Coupler, Long Handle, Viton B
SKU: LYNX852
Manufacturer part number: 301Z10041
  • SKU : LYNX852
  • Brand : Liquip
  • Product Portfolio : Fluid Technology
  • Product Family : Tanker Solutions
  • Product Group : Tanker Accessories
  • Description : The LYNX Series Brings Together The Best Features Of All API Couplers To Provide A Superior And Effortless Bottom Loading Experience.
  • Description : The Lynx Is Optimised To Bring Your Liquid Terminals And Tank Trucks The Very Best In Dry-Break API Technology. From Its Ultra-Durable Stainless-Steel Collar To Its Ability To Protect Your Loading-Arm Connection Even When Facing Surge Pressures Up To 3,400 kPa, You Can Count On Lynx For Years Of Service And To Help Minimize Fluid Loss.
  • Features : Minimal Product Leakage During Disconnect Increases Site Safety.
  • Features : Low Risk Of Leakage Because Of A Proven Seal Design.
  • Features : Four, "True Interlocking" Stainless Steel Latches Ensure Superior Latch Alignment And Maximum Safety
  • Features : Lightweight Without Reducing Safety And Reliability.
  • Features : High-Quality Components Including A Stainless-Steel Collar And Hard Anodized Aluminum Body For Increased Service Durability And Life.
  • Features : Fast And Easy Disassembly Of Entire Coupler Through U-Pin Design.
  • Features : U-Pin Is Secured When The Ttma Flange Is Fastened To Prevent The Pin From Falling Out In Service.
  • Features : Fast In-Field Replacement Of Main Seals, On Or Off The Arm.
  • Features : Less Drippage At Disconnect Compared To Previous Models.
  • Features : Collar Designed To Ensure Minimal Distortion Of Critical Latching Face.
  • Features : Easy To Operate Handle With A Noticeable Positive Lock.
  • Features : Ergonomic Operating Handle And Carry Loop Results In Less Physical Strain On Users.
  • Mounting : By Industry Standard 100mm (4”) TTMAFlange.
  • Weight : 8.6 kg
  • Handle Length : 200mm
  • Warranty : 12 Months
