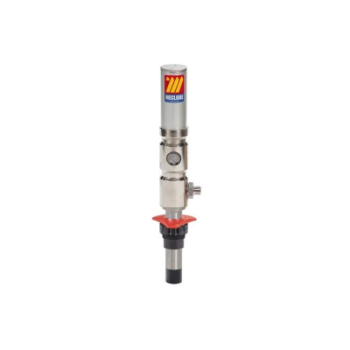

Picture of MEC-029-1374-000 - Stainless Steel Air-Operated Transfer Pump

MEC-029-1374-000 - Stainless Steel Air-Operated Transfer Pump

Manufacturer: Meclube
Stainless Steel Air-Operated Transfer Pump
SKU: MEC-029-1374-000
Manufacturer part number: 301Z11151
  • SKU : MEC-029-1374-000
  • Brand : Meclube
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Piston Pumps
  • Description : Air-Operated Stainless Steel Transfer Pump. Suitable For Fast Transferring Of Anti-Freeze And Windscreen Liquid. The Delivery Capacity Of A Pump Varies According To Particular Applications And Combinations: The Pressure Of Air Supplied; Viscosity And Temperature Of The Fluid; Dimensions Of Delivery Hose; Dimensions Of Connections And Type Of Gun Which Is Used. The Operating Pressure May Vary Between A Minimum Of 3 Bar And A Maximum Of 8 Bar. To Optimize The Performance And The Time-Life Of The Air-Operated Pumps We Advise To Use Filtered And Lubricated Air.
  • Features : For Wall-Fixing Or Fixed Positions, It Allows Different Possibilities Of Application Depending On The Different Accessories. Viton Seals With Threaded Ring For Drum Connection
  • Gross Weight : 8.2 kg
  • Nett Weight : 7.5 kg
  • Compression Ratio : 3:1
  • Air Consumption : 220 L/Min
  • Noise Level : 80 Db
  • Shank Diameter : 42 mm
  • Shank Length : 215 mm
  • Working Pressure : 6-8 Bar
  • Air Inlet Connection : F 1/4" G
  • Oil Outlet Connection : M 1/2" G
  • Oil Delivery Capacity 8 Bar : 30 L/Min
  • Warranty : 12 Months
