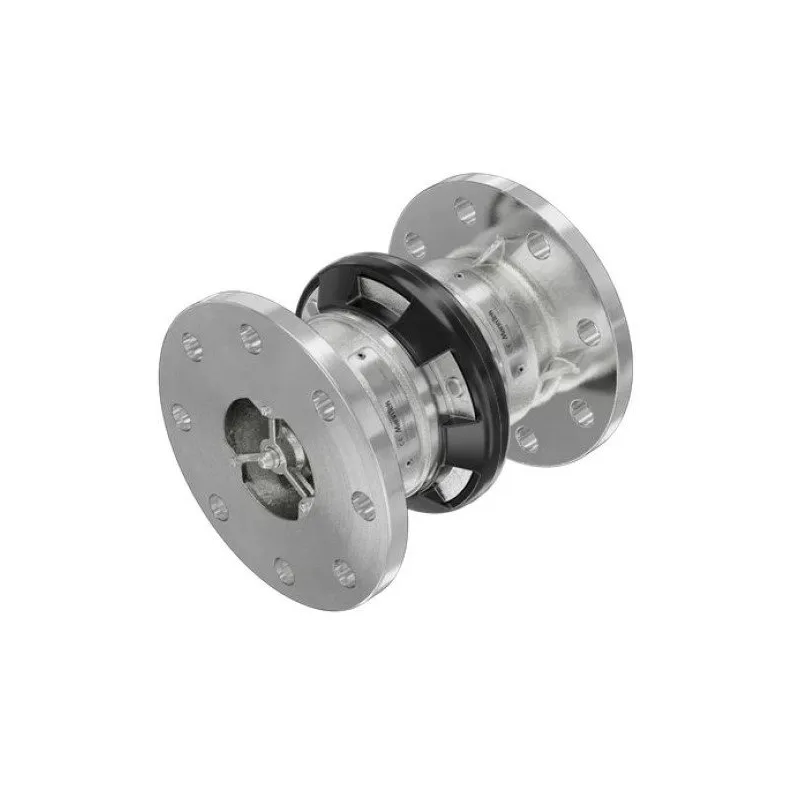

Picture of MT-N462D4471F - Breakaway Ind. 3"- 3" Ansi Cl.300 Ss Fpm Low Temp Bf 33 Kn/Tp 30 Bar Ps25 Bar

MT-N462D4471F - Breakaway Ind. 3"- 3" Ansi Cl.300 Ss Fpm Low Temp Bf 33 Kn/Tp 30 Bar Ps25 Bar

Manufacturer: Manntek
Breakaway Ind. 3"- 3" Ansi Cl.300 Ss Fpm Low Temp Bf 33 Kn/Tp 30 Bar Ps25 Bar
SKU: MT-N462D4471F
Manufacturer part number: MT-N462D4471F
GTIN: null
  • SKU : MT-N462D4471F
  • Brand : Manntek
  • Product Portfolio : Terminal Solutions
  • Product Family : Dry Disconnect Couplings
  • Description : Safety Breakaway Couplings (Emergency Release Couplings) With Integrated Shut-Off Valves Are Used To Avoid Spillage And Damage Associated With Drive And/Or Pull Away Incidents When Loading And Unloading. Used To Protect Hose Assemblies And Loading Arms Against Excessive Loads, e.g.. Due To Drive / Pull Away Incidents Or Rapic Removal Of The Mobile Tanker In Emergency Situations. Designed With Breaking Bolts; Activation At A Defined Tensile (Pulling) Force On The Transfer Line Being Applied, Either Straight Or At An Angle.
  • Installation : Installation Between A Hose Assembly Or Loading Arm And A Fixed Point, e.g. Pipe System, Rail Tanker Or Road Tanker Connection, Release By Pull At Any Angle Up To 90 Degrees.
  • Features : SBC 'Industrial Type' Have Three External Breaking Bolts. Breaking Forces (Release Forces) Are Calculated On The Basis Of The Working Pressure Of The System In Question. Standard Breaking Forces For SBC Are Calculated To Protect A Mating Hose With A Burst Pressure 4 Times WP.
  • Features : If The Transfer Line Is Subjected To Inadvertent And Strong Tensile Loads, e.g. Due To A Premature Movement Or The Drifting Of Ships / Barges, The Coupling Will Separate And Instantly Seal The Two Open Ends. It Can Be Reassembled On Site With A Set Of Spare Parts.
  • Application : Container Discharge, Fuel Bunkering Truck-To-Ship, Terminal-To-Ship, Loading/Unloading Of Tank Trucks, Rail Tankers And Ships
  • Nominal Diameter : DN 80 (3") Similar To 2½", But Where Higher Loading Rates Are Required. Especially On Rail Tankers, Marine Tankers, Iso Containers, Aviation Fuel Bunkering And Related Activities.
  • Body Material : Stainless Steel 1.4408 (AISI 316) Standard
  • Connection 1 : Flanged Connection
  • Connection 1 Detail : 3" ANSI CI.300
  • Connection 2 : Other Flanged Connection
  • Connection 2 Detail : 3" Ansi Ci.300
  • O-Rings : FKM LT (Low Temperature)
  • Warranty : 12 Months
