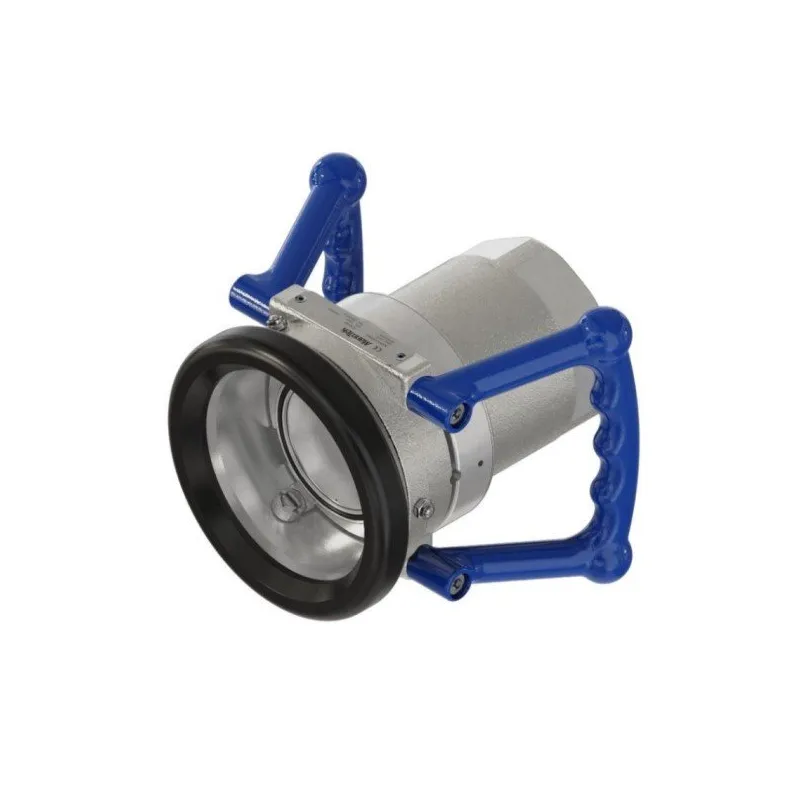

Picture of MT-S415B1101 - Hose Unit 3" - 3" Npt Al Fpm/Pur Ps 10 Bar Dry Break Coupling

MT-S415B1101 - Hose Unit 3" - 3" Npt Al Fpm/Pur Ps 10 Bar Dry Break Coupling

Manufacturer: Manntek
Hose Unit 3" - 3" Npt Al Fpm/Pur Ps 10 Bar Dry Break Coupling
SKU: MT-S415B1101
Manufacturer part number: MT-S415B1101
GTIN: null
  • SKU : MT-S415B1101
  • Brand : Manntek
  • Product Portfolio : Terminal Solutions
  • Product Family : Dry Disconnect Couplings
  • Description : Self Locking Quick Connect/Disconnect Coupling, To STANAG 3756, For Liquid Media. Hose Unit With Swivel, Typically Mounted On Hose Assemblies And Loading Arms For Temporary Connection To Storage And Mobile Transport Units, For Loading And Unloading.
  • Features : Quick And Safe Connection Of Hose Assemblies And Loading Arms To Mobile And Stationary Tanks, Under Pressure And With Minimised Liquid Loss. The Standardised Interface To STANAG 3756 With Its Bayonet Coupling Principle Has Been Widely Accepted In The Industry. Both Coupling Parts Are Equipped With A Flat Poppet Valve. For The Connection, The Hose Unit Is Pushed Onto The Tank Unit And Coupled / Sealed By Turning The Coupler Clockwise By 15 Degrees. When The Unit Is Turned By 100 Degrees, The Valves Move Into The Tank Unit So That The Medium Can Flow. When A Similar Turn Is Made Counter-Clockwise, The Flow Is Stopped And The Coupler Can Be Pulled Off.
  • Socket Diameter : 3" (Ø 119mm)
  • Body Material : Aluminium
  • Connection : Threaded Connection
  • Connection Detail : F 3" NPT
  • O'Rings : Viton® (FPM/FKM) Standard
  • Handle : Standard
  • Selectivity System - : Without Selectivity System (Standard)
  • Flat Seal : Without
  • Accessories : Without
  • Warranty : 12 Months
