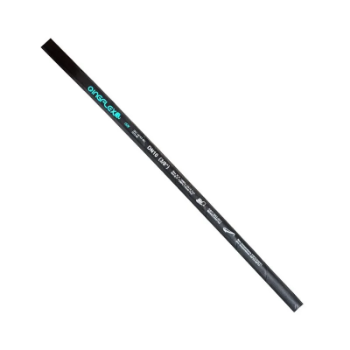

Q13-06 - 3/8' 1 Wire Steel Braid En853 1Sn Rubber Hydraulic Hose 180Bar Wp | Peak Temperature : +120 Celsius

Manufacturer: Goflo
3/8' 1 Wire Steel Braid En853 1Sn Rubber Hydraulic Hose 180Bar Wp | Peak Temperature : +120 Celsius
SKU: Q13-06
Manufacturer part number: Q13-06
GTIN: 6007000003493
  • SKU : Q13-06
  • Product Portfolio : Fluid Technology
  • Catalogue Group : Hose & Swivel
  • Product Group : Hoses
  • Brand : Goflo
  • Sub Brand : Goflo
  • EAN : 6007000003493
  • Warranty : 1 Year
  • Product Type : Hydraulic Hose
  • Hose Standard : EN 853 1SN
  • SAE Equivalent : SAE 100 R1AT
  • Internal Diameter : 9.5 mm
  • Nominal Size : DN10
  • Outside Diameter : Approximately 17.5 mm
  • Reinforcement : Single High Tensile Steel Wire Braid
  • Inner Tube : Oil Resistant Synthetic Rubber
  • Cover: Synthetic Rubber
  • Maximum Working Pressure : 180 Bar (2,610 psi)
  • Diameter Outer: 14.4 mm
  • Safety Factor : 04:01
  • Minimum Bend Radius : 100 mm
  • Vacuum Rating : Limited Vacuum Service
  • Temperature Range : -40 Celsius to +100 Celsius
  • Pressure maximum: 180 bar
  • Compatible Fluids : Petroleum Based Hydraulic Oils, Water Glycol Fluids, Lubricating Oils and Air
  • Electrical Properties : Non-conductive Rubber Cover
  • Temperature intermittent Maximum: +120 Degrees
  • Temperature Minimum: -40 Degrees
  • Temperature Maximum: 100 Degrees
  • Diameter Inner: 9.5 mm
  • Area of use: Diesel, Grease, Oil, Water
  • Pressure burst minimum: 720 bar
  • Material: NBR, Steel
  • Standard SAE: SAE 100R1AT
  • Outer Cover : Abrasion, Weather and Ozone Resistant Synthetic Rubber
  • Standard EN: EN 853 1 SN
  • Bend Radius: 70 mm
  • Hose Type: 1SN
  • Burst Pressure : 720 Bar (10,440 psi)
  • Peak Temperature : +120 Celsius (Intermittent)
  • Hose Size: 3/8 Inch
