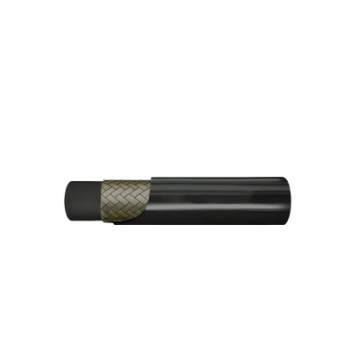

Q13-10 - 5/8' 1 Wire Steel Braid En853 1Sn Rubber Hydraulic Hose 130Bar Wp | Peak Temperature : +120 Celsius

Manufacturer: Goflo
5/8' 1 Wire Steel Braid En853 1Sn Rubber Hydraulic Hose 130Bar Wp | Peak Temperature : +120 Celsius
SKU: Q13-10
Manufacturer part number: Q13-10
GTIN: 6007000003516
  • SKU : Q13-10
  • Product Portfolio : Fluid Technology
  • Catalogue Group : Hose & Swivel
  • Product Group : Hoses
  • Brand : Goflo
  • Sub Brand : Goflo
  • EAN : 6007000003516
  • Warranty : 1 Year
  • Product Type : Hydraulic Hose
  • Hose Standard : EN 853 1SN
  • SAE Equivalent : SAE 100 R1AT
  • Internal Diameter : 15.9 mm
  • Nominal Size : DN16
  • Outside Diameter : Approximately 24.0 mm
  • Reinforcement : Single High Tensile Steel Wire Braid
  • Inner Tube : Oil Resistant Synthetic Rubber
  • Outer Cover : Abrasion, Weather and Ozone Resistant Synthetic Rubber
  • Maximum Working Pressure : 130 Bar (1,885 psi)
  • Burst Pressure : 520 Bar (7,542 psi)
  • Hose Size: 5/8 Inch
  • Hose Type: 1SN
  • Material: NBR, Steel
  • Temperature Range : -40 Celsius to +100 Celsius
  • Peak Temperature : +120 Celsius (Intermittent)
  • Standard EN: EN 853 1 SN
  • Standard SAE: SAE 100R1AT
  • Temperature intermittent Maximum: +120 Degrees
  • Temperature Minimum: -40 Degrees
  • Temperature Maximum: 100 Degrees
  • Bend Radius: 100 mm
  • Compatible Fluids : Petroleum Based Hydraulic Oils, Water Glycol Fluids, Lubricating Oils and Air
  • Electrical Properties : Non-conductive Rubber Cover
  • Pressure burst minimum: 520 bar
  • Diameter Inner: 16 mm
  • Cover: Synthetic Rubber
  • Pressure maximum: 130 bar
  • Vacuum Rating : Limited Vacuum Service
  • Minimum Bend Radius : 150 mm
  • Safety Factor : 04:01
  • Diameter Outer: 23.1 mm
  • Area of use: Diesel, Grease, Oil, Water
