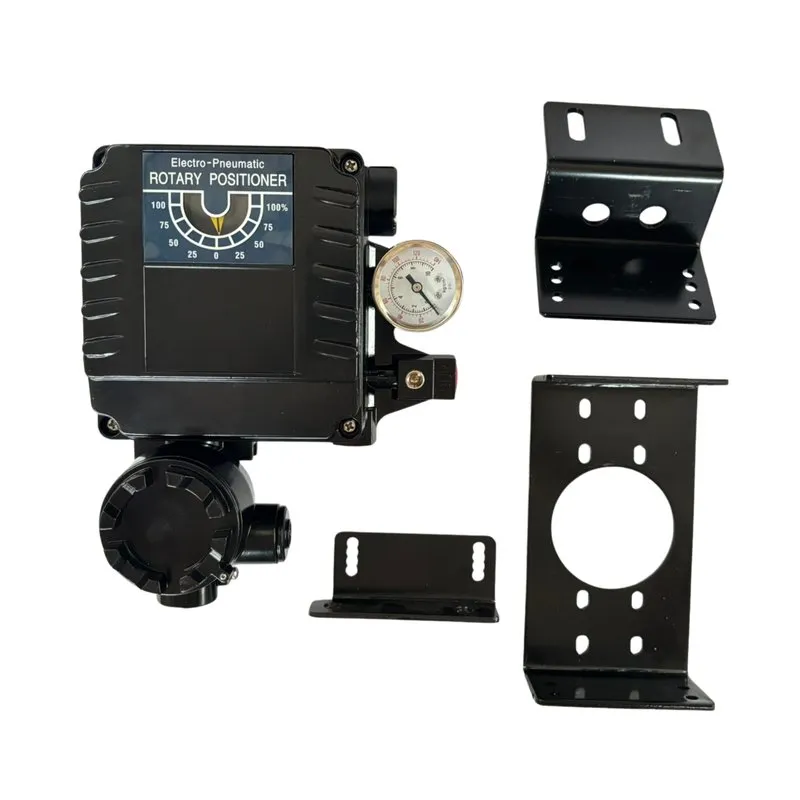

Picture of REP-1000R - Positioner / Limit Switch Box For Pneumatic Actuators 90° Po

REP-1000R - Positioner / Limit Switch Box For Pneumatic Actuators 90° Po

Manufacturer: RFS
Positioner / Limit Switch Box For Pneumatic Actuators 90° Po
SKU: REP-1000R
Manufacturer part number: REP-1000R
GTIN: 6007000381690
  • SKU : REP-1000R
  • Brand : RFS
  • Product Portfolio : Pneumatics
  • Product Family : Actuators
  • Product Group : Positioners
  • Input Signal: 4-20mA DC
  • Impedance: 250 +-15 Ohm
  • Supply Pressure: 1.4-7kgf/cm2(20-100psi)
  • Stroke: 0 - 90 Degrees C
  • Air Connection: PT(NPT)1/4”
  • Gauge Connection: PT(NPT)1/8"
  • Conduit: PF1/2” (G1/2”)
  • Explosion Proof: ExiallB T6
  • Protection: IP66
  • Ambient Temperature: Operating -20 -70 Degrees C; Explosion -20-60 Degrees C
  • Linearity: Single Action ±1%F.S.; Double Action ±2%F.S
  • Hysteresis: ±1%F.S
  • Sensitivity: Single Action ±0.2%F.S; Double Action ±0.5%F.S
  • Repeatability: ±0.5%F.S
  • Air Consumption: 3LPM (Sup=1.4kgf/cm2, 20psi)
  • Flow Capacity: 80LPM (Sup=1.4kgf/cm2, 20psi)
  • Material: Aluminum Diecasting
  • Weight: 2.8kg
  • The positioner is used for operation of pneumatic rotary valve actuators by means of electrical controller
    or control system with a similar output signal of Dc4 to 20mA or split ranges
  • There is no resonance at 5~200H
  • The change of RA/DA acting is convenient. It’s able to apply to single pr double acting actuator
  • It’s possible to prevent the hunting with orifice to the small size actuato
  • It’s economical due to less air consumption
  • It’s able to control the 1/2 split range with simple operation without replacement of parts.
  • Warranty : 12 Months
